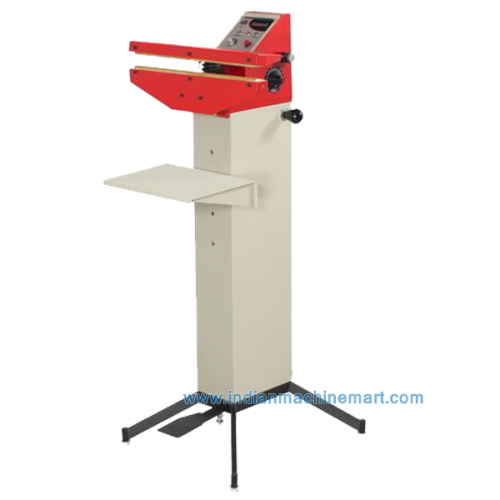

Features and Specifications of Foot Operated Sealing Machine:
- Equipped with a plug-in timer which controls the sealing time
- Audio-visual sealing indicators to indicate the completion of heat cycle and sealing
- Offers flat seal consistently
- Tiltable sealing jaws
- Provided with an adjustable bag rest for operator's comfort
Indian Machine Mart has several models of Foot Operated Sealing Machine. Clients can choose any as per their application requirement and get the best price quotation.
Technical Details:
|
Model
|
Seal (mm) | Power | Dimensions (mm) | Weight | ||||
| Length | Width | V | W | L | B | H | (kg) | |
| Impulse Sealer | ||||||||
| QS 200 F | 200 | 1.6 | 240 | 280 | 660 | 620 | 1050 | 17 |
| QS 200 FE | 200 | 5 | 240 | 470 | 660 | 620 | 1050 | 18 |
| QS 200 FP | 200 | 3x2 | 240 | 750 | 660 | 620 | 1050 | 22 |
| QS 300 F | 300 | 1.6 | 240 | 400 | 660 | 620 | 1050 | 19 |
| QS 300 FE | 300 | 5 | 240 | 800 | 660 | 620 | 1050 | 22 |
| QS 300 FP | 300 | 3x2 | 240 | 800 | 660 | 620 | 1050 | 24 |
| QS 400 F | 400 | 1.6 | 240 | 470 | 660 | 620 | 1050 | 20 |
| QS 400 FE | 400 | 5 | 240 | 720 | 660 | 620 | 1050 | 23 |
| QS 500 E | 500 | 1.6 | 240 | 560 | 660 | 620 | 1050 | 20 |
| QS 500 FE | 500 | 5 | 240 | 750 | 660 | 620 | 1050 | 23 |
| QS 600 FE | 600 | 1.6 | 240 | 650 | 700 | 620 | 1050 | 23 |
| QS 600 F FE | 600 | 5 | 240 | 920 | 700 | 620 | 1050 | 26 |
| QS 900 F | 900 | 1.6 | 240 | 950 | 1000 | 620 | 1050 | 30 |
| Hot Bar Sealers | ||||||||
| 200 FH | 200 | 12 | 240 | 200 | 660 | 620 | 1050 | 24 |
| 300 FH | 300 | 12 | 240 | 270 | 660 | 620 | 1050 | 26 |
| 400 FH | 400 | 12 | 240 | 240 | 660 | 620 | 1050 | 28 |
