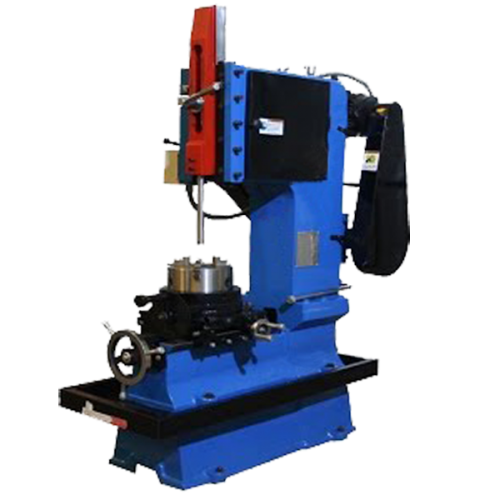

The complete specification of a typical IMM 10 Vertical Slotting Machine is as follows:
| Product Code | IMM-10 |
| Model | IMM-10 |
| Maximum Stroke | 10"/250 mm |
| Rotary Table | 10"/250 mm |
| Longitudinal Movement | 9"/230 mm |
| Cross Movement | 9"/230 mm |
| Speed Adjustment | 3 Speed |
| Ram Adjustment | 10"/250 mm |
| Throat Depth | 16"/410 mm |
| Main H.P Required | 1.5 H.P |
| Distance from the Tool to Main Column | 13"/330 mm |
