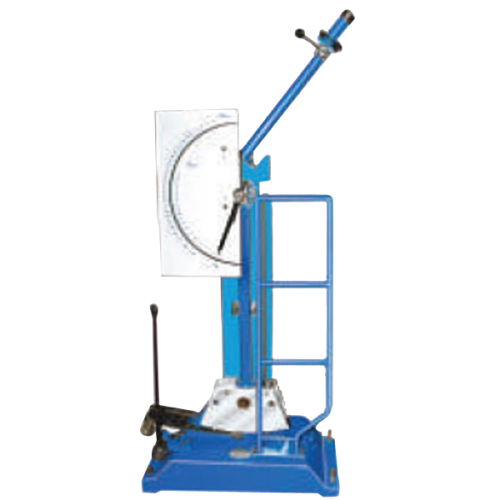

Following are the specifications of offered machine:
| Specifications | IMM-300 Charpy Test | IMM-300 Charpy Test | IMM-300 Izod Test | IMM-30 (ASTM) Charpy Test |
| Pendulum Drop Angle | 1200 | 1400 | 900 | 1400 |
| Pendulum Effective Weight | 1.3725/4.575Kg | 21.400 kg | 21.300 kg | 21.819 kg |
| Striking Velocity of Pendulum | 2.45 m/sec | 5.3466 m/sec | 3.857 m/sec | 5.182 m/sec |
| Pendulum Impact Energy | 0.42/1.4 Kg-m | 300 J | 168 J | 216 Ft Ib |
| Mini Scale Graduation | 0.005 kg-m/0.07 | 2 J | 2 J | 2 Ft Ib |
| Distance of axis of pendulum rotation from centre of specimen hit by pendulum | 204 | 815mm | 815 mm | 775 mm |
| Max. Permissible Loss by Friction & Windage Etc. | 0.50% of Impact energy | 0.75% of Max. Impact energy | ||
