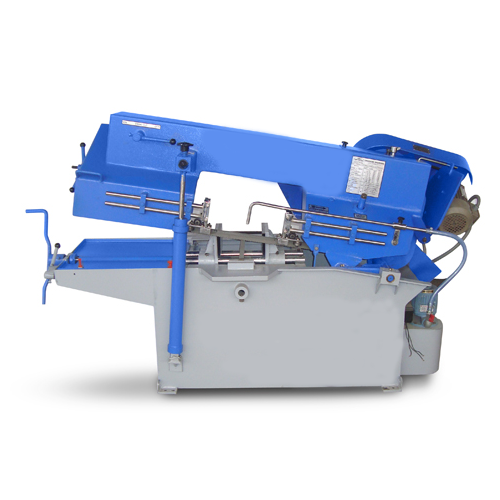

Below are the specifications of different models of Manually Operated Hinge Type Bandsaw available with Indian Machine Mart.:
| SPECIFICATION | IMM-1 | IMM-2 | IMM-251 | IMM-3 | IMM-4 | IMM-5 | IMM-6 | |
| Cutting Capacity Round | mm | 205 | 205 | 250 | 315 | 350 | 400 | 450 |
| Square | mm | 175 x 175 | 175x175 | 225x225 | 275x275 | 300x300 | 400x400 | 450x450 |
| Rectangle | mm | 220x27x0.9 | 220x100 & 200x150 | 250x175 | 300x250 | 400x200 | 450x350 | 500x350 |
| Blade Dimensions | mm | 3000x27x0.9 | 3000x27x0.9 | 3300x27x0.9 | 3760x27x0.9 | 4100x34x1.1 | 4420x34x1.1 | 4570x34x1.1 |
| Power Req. Saw Drive Coolant Pump Hydraulic Drive (440V AC, 50 HZ) |
Kw/HP Kw/HP Kw/HP |
0.75/1.0 0.12/0.15 0.33/0.5 |
0.75/1.0 0.12/0.15 --- |
1.1/1.5 0.12/0.15 --- |
1.5/2.0 0.12/0.15 --- |
1.5/2.0 0.12/0.15 --- |
1.5/2.0 0.12/0.15 --- |
2.2/3.0 0.12/0.15 --- |
| Blade Speed | mtr./min | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 | 20-35-55-75 |
| Cutting Feed Control | Power Hydraulic | Saw Arm Weight Adjustment by Spring Tension & Simple Needle Value | ||||||
| Job Feeding | Hydraulic Shuttle Vice | Manual | ||||||
| Job Feeding Stroke | mm | 10 To 200 | Manual | |||||
| Dimensions (LXWXH) | Mtr. | 1.7x1.5x0.9 | 1.7x0.6x0.9 | 1.8x0.7x1 | 2.4x0.9x1.1 | 2.6x0.9x1.1 | 2.7x0.9x1.1 | 28x0.9x1.1 |
| Net Weight | Kg | 450 | 320 | 375 | 760 | 820 | 900 | 950 |
Hardware Parts:
- Saw drive Electrical Motor
- Coolant Pump
- On-Off Contactor with Push Buttons
- V-belt Pulleys with V-Belt
- Job Stopper
- Oil Field Gear box & Hydraulic Cylinder
- Friction Type Chip Removal Wire Brush
- Roller Bearings/Carbide Wear Pad Blade Guide System
- Automatic Work Height Control & Fast Approach (For LK 1 HSA Model)
- PLC Control for all Electric & Hydraulic Functions
Clients can purchase several Optional Accessories with this machine to make a complete set up at extra cost. These are:
- Chip Removal Wire Brush
- Carbon Steel Bandsaw Blades
- Bi-Metal Bandsaw Blades
- Mechanical Job Feeder Unit
- Swivel Vice Assembly for Angular Cutting
- Electro-Mechanical Type Auto Saw Arm Lifter & Cutting Feed Regulator
- Job Roller Stand
