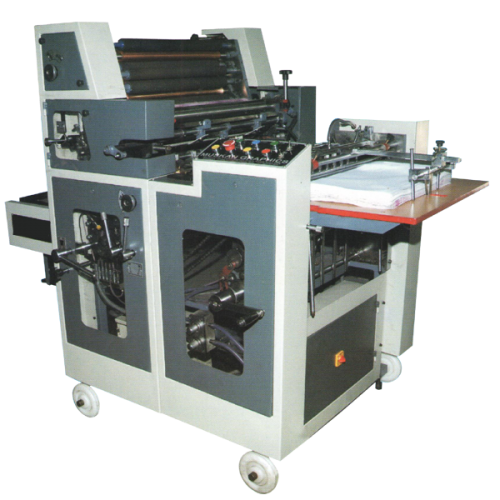

Technical Details of the available models of Carry Bag Offset Printing Machine:
|
Model |
15x20 |
16x22 |
|
Max. Bag Size |
380x510 mm |
410x560 mm |
|
Max. Printing Area |
360x490 mm |
390x545 mm |
|
Mn. Bag Size |
125x180 mm |
125x180 mm |
|
Plate Size |
430x530 mm |
430x560 mm |
|
Blanket Size |
470x530 mm |
470x560 mm |
|
Bag Thickness |
40-150g/m2 |
40-150g/m2 |
|
Ink Roller System |
13 Ink Roller |
13 Ink Roller |
|
Water Roller System |
5 Water Roller (3 Form Roller) |
5 Water Roller (3 Form Roller) |
|
Printing Speed (For bags) |
2000-5000 iph |
2000-5000 iph |
|
Printing Speed (For Paper) |
3000-700 iph |
3000-700 iph |
|
Power Required |
2 HP (Single Phase) |
3 HP (Single Phase) |
|
Machine Dimension (LxWxH) |
1800x1200x1400 |
1800x1400x1400 |
|
Machine Gross Weight (Approx) |
1200 kg |
1200 kg |
