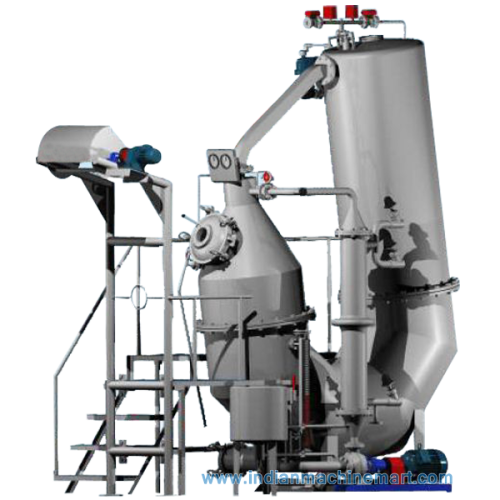

Technical Details of Jet Dyeing Machine:
- Available in 25 to 400Kg. capacity (Single Tube) as per fabric quality
- Ultra Low Liquor
- Dye: 30 To 450 Grms./Mtr. Sq.
- Suitable for Woven & Knitted Fabric
- Has Upto 140°C working Temp.
- Working Pressure: 4Kg./cm²
- Fabric Speed can be adjusted upto 450 Mtr./Min
- Vessel is made from stainless steel SS 316 L
Specifications for Available Models:
| Capacity (Kg./Batch) | Length (L) (MM) | Width (W) (MM) | Height (H) (MM) |
| 25 | 3250 | 1650 | 3050 |
| 50 | 3600 | 1800 | 3450 |
| 100 | 4150 | 2050 | 3400 |
| 150 | 4150 | 2050 | 4000 |
| 200 | 4200 | 2200 | 4100 |
| 250 | 4200 | 2200 | 4400 |
| 300 | 4600 | 2250 | 4200 |
| 400 | 4700 | 2400 | 4350 |
Why to choose Jet Dyeing Machine:
- Liquor ratio less then existing “U” type jet dyeing machine
- Reduce thermic energy
- Reduce chemical consumption
- Reduce power consumption compared with existing “U” type jet dyeing machine
- No need of pilling (Reduce Maintenance)
- Lowest running cost
- Zero Entanglement
- Reduce elongation
- Low fabric lifting height
Optional Features that can be added to the offered machine:
- Fully automatic with PLC
- Main pump Invertor
- Flow meter (Water liter counter)
- Magnetic level indicator / controller
- Double tube for higher capacity
