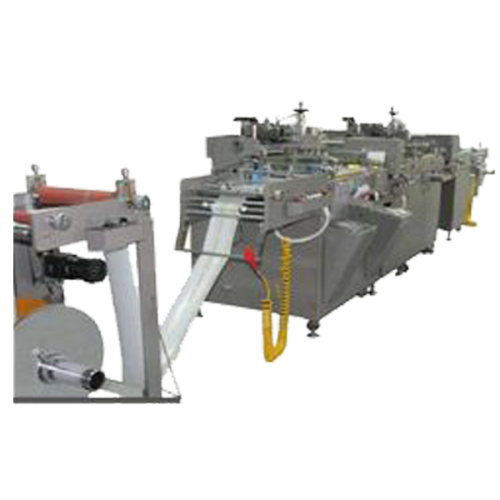

Technical Specifications of available Roll to Roll Screen Printing Machine:
| Max printing area | (l)350 x (w)400mm |
| Max web width | 380mm |
| Max printing speed | 4800imp/hr |
| Material thickness | 0.05-0.5mm |
| Squeegee servo motor | 400wt (with reduction gear 20:1) |
| Web feeding servo | 750wt (with reduction gear 20:1) |
| Vacuum motor | 2.2kw |
| Printing stations | 3 colors |
| Power | 380v, 3phs, as per customers instruction |
| Dimension | (h)1500 x (w)1500 x (l)5000mm |
| Weight | 2600kg |
