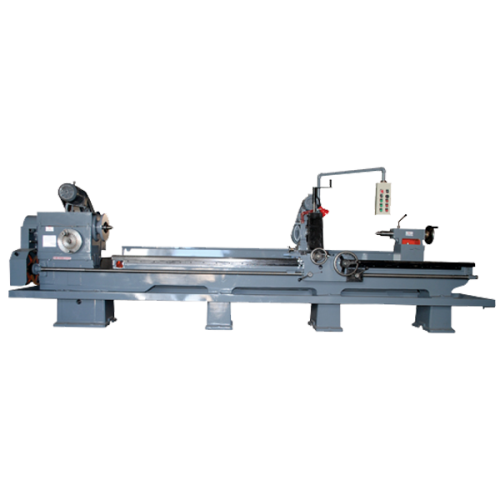

Features of Thread Milling Machine:
- Easy to install in less space
- Strong construction
- High working rate
- Less power requirement
- High quality threads, especially in high temperature alloys, which work hardened easily
- Sharp thread milling cutters
Specifications:
| Bed Length | 1000 to 10000 mm. |
| Bed Width | 375 / 450 mm Min./Max. |
| Job Diameter | 20 to 300 mm. |
| Admit Between Center | 300 to 9000 mm. |
| Spindle Bore | 100 mm. |
| Main Spindle RPM | 0.1 to 1 RPM. |
| Longitudinal Feeds | 0.1 to 200 mm. |
| Main Spindle Motor | 3 HP. |
| Milling Head Capacity | 25 HSS to 40 mm. |
| Carbide Milling Head Speed | 30 mt./min. to 90 mt./min. |
| Milling Head RPM | 300 & 500 RPM. |
| Milling Head Motor | 2 HP Min./Max. |
| Milling Head Nose | ISO-40. |
| Taper Turning Attachment | 300 to 9000 mm. |
| Pitch | 20 to 300 mm. |
| Lead Screw Diameter & Pitch | 50 mm / 2TPI. |
| Spindle Sleeve (Taper Bore) | MT-4 / MT-5. |
| Multi starts Accuracy | 0.15 degree. |
| Number of Multi starts | 1440 |
| Tail Stock Spindle Diameter | 50 / 75 mm |
